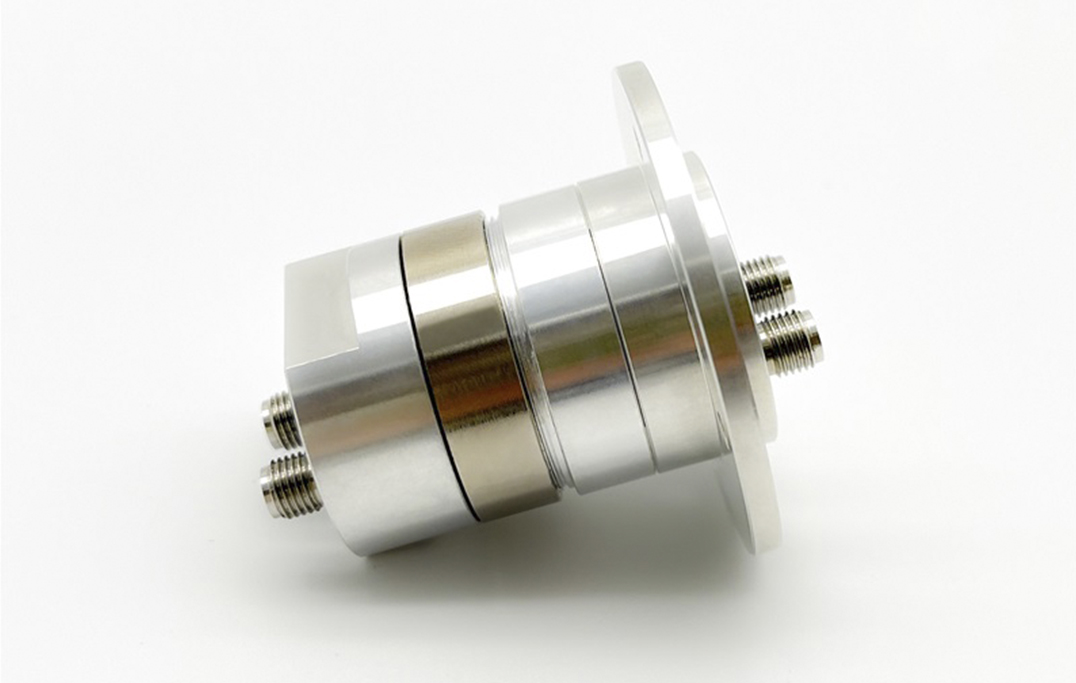

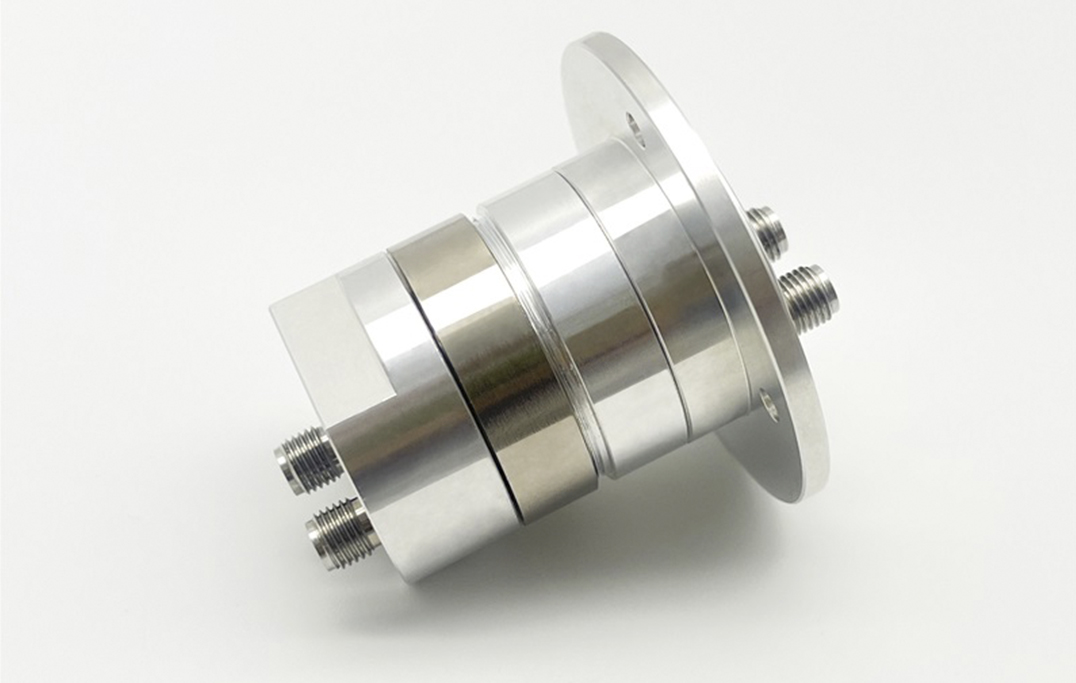

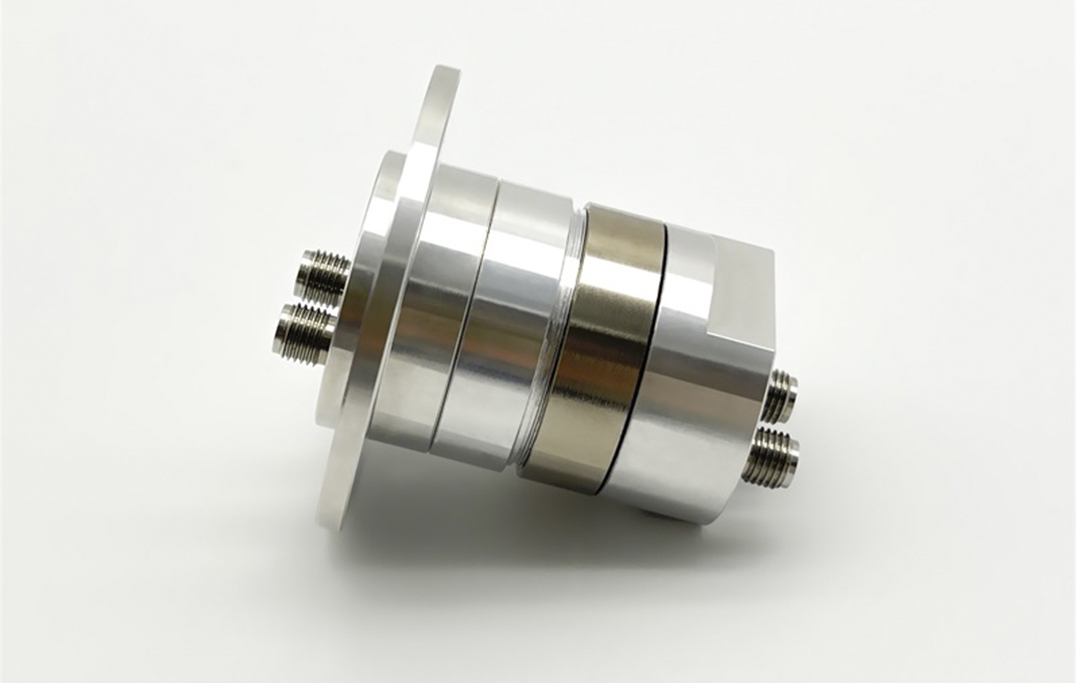

SRF-204 RF Slip Ring

　　Working frequency DC-18GHz/DC-13GHz, with SMA-F connectors on both ends. Channel 1: VSWR ≤ 1.5, insertion loss ≤ 1.0dB. Channel 2: VSWR ≤ 2.0, insertion loss ≤ 1.0dB. Channel isolation ≥ 50dB, operating temperature -45 ～ +70℃. Maximum speed 60rpm, working life ≥ 5 million revolutions. Installation diameter 32mm, convenient for electric slip ring integration assembly.
