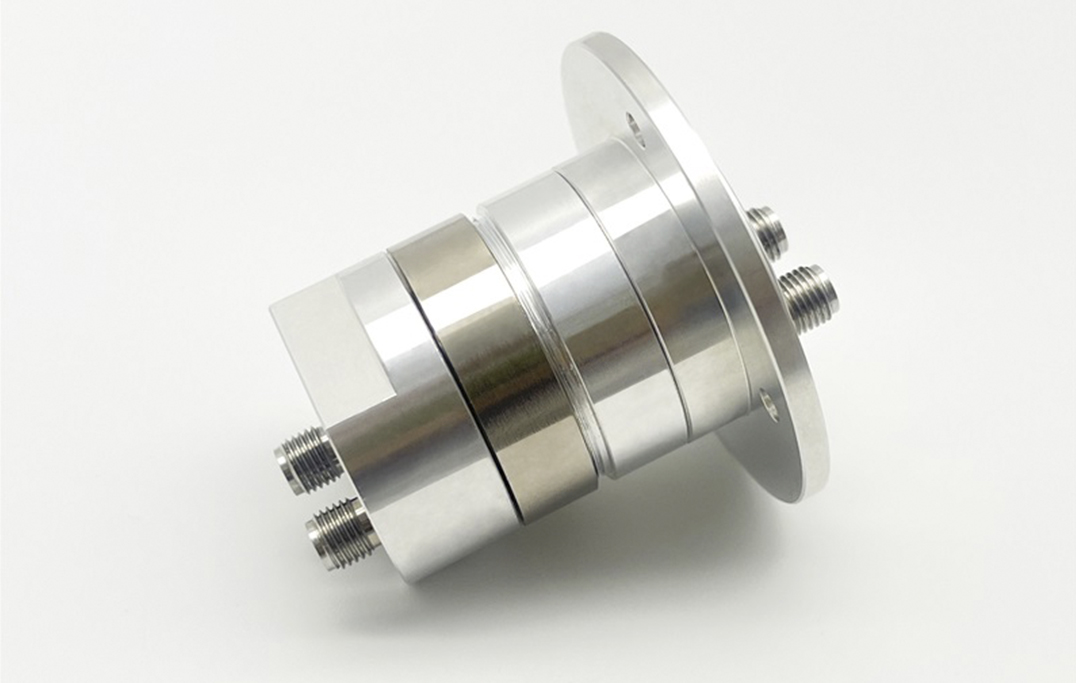

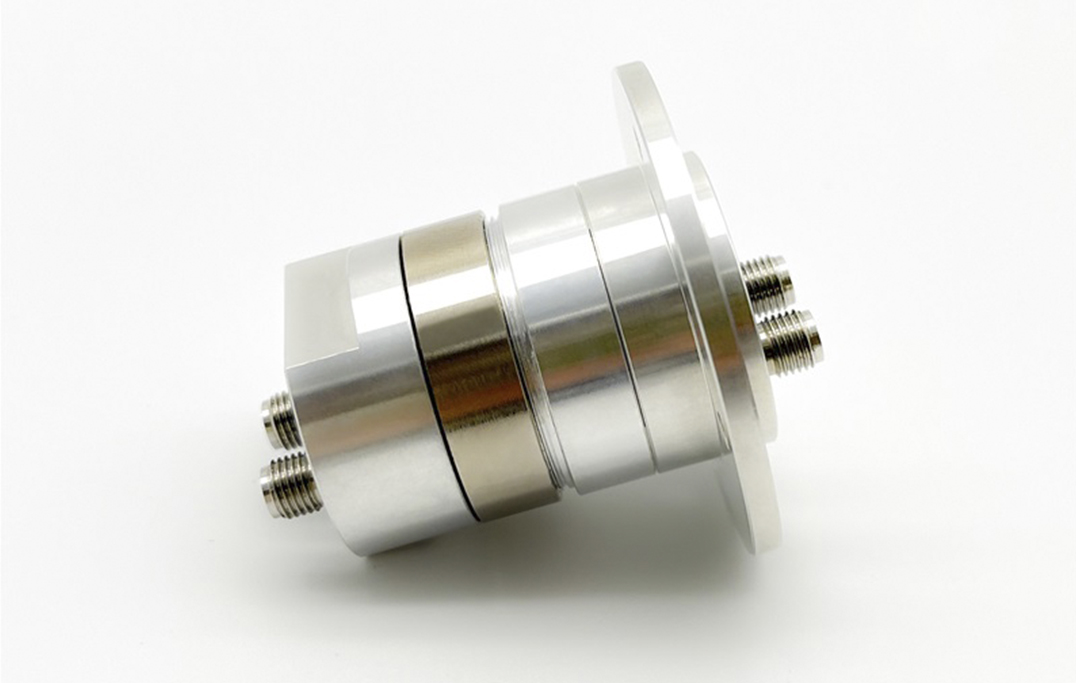

SRF-203 RF Slip Ring

　　Operating frequency range is DC-8GHz/DC-8GHz, with SMA-F interfaces on both ends. Channel 1: standing wave ratio ≤ 1.3, insertion loss ≤ 0.4dB Channel 2: standing wave ratio ≤ 1.6, insertion loss ≤ 0.8dB Channel isolation ≥ 50dB, operating temperature -45 ～+70℃. Maximum speed is 60rpm, and the operating lifespan is ≥ 5 million rotations. Installation diameter is 32mm, which is convenient for electrical slip ring integration and assembly.
